SW LED BBS03 Basketball Scoreboard

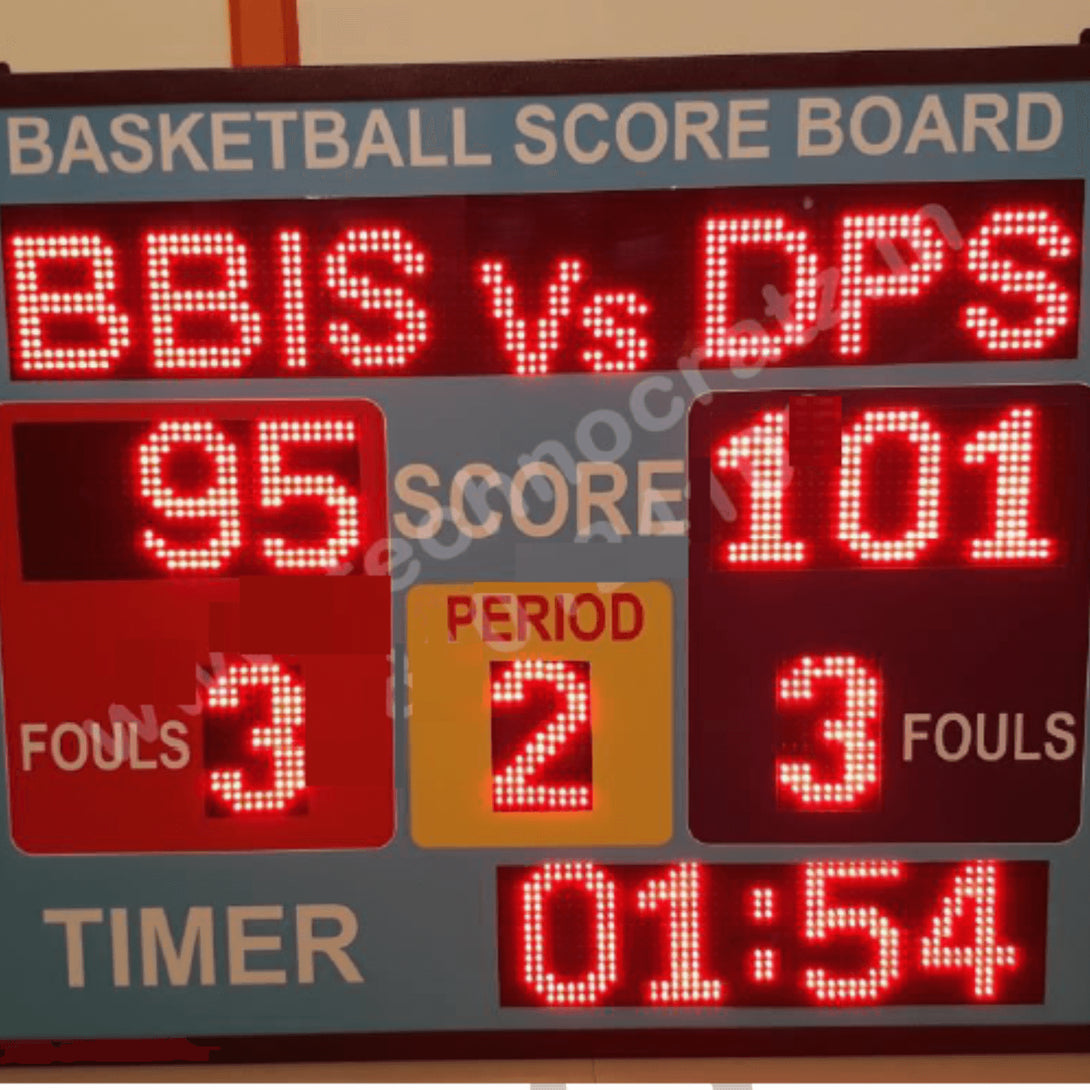

• 3 Feet x 4 Feet. ( Digits 6”) As shown in the picture scores, fouls and period are incremented from the wire attached console keypad and Timer start hold and reset are also operated from the keypad console.
• The team names are 3 alphabets each in digital.

• Pixel pitch	10mm
  Pixel Density	10,000 dots/m²
  Pixel configuration	1R ( 1R 1G for tri colour and RGB for full colour)
  LED type	DIP346
  Module size	320*160mm
  Module weight	583g
  Module resolution	32*16dots
  Brightness	≥2000 cd/m² ( Higher for Tri and Full colour)
  Viewing Angle	H≤110°  V≤50°
  Driving Mode	1/4 scan constant current
  Interface	HUB12
  Input voltage	4.8-5.5VDC
  Max. Power Consumption	220 w/m² ( LED Area)
  Avg. Power Consumption	80-100 w/m² ( LED Area)
  Max. Current	2.6-2.9A
  Frame rate	60 frames/s
  Refresh Rate	≥200Hz
  Defective Dots Rate	<0.0001 (LED display line standard: ≤ 0.0003)
  Decay Rate	≤5%/year
  Brightness Conformity	>95%
  MTBF	≥10000 hours
  Lifespan	≥50000 hours
  Protective function	Over-heat/Over-load /Power-down /Power-leakage/Lightning -protection etc.
  Operating Temperature	-20???~+50???
  Operating Humidity	10-85% no condensation
  Storage Temperature	-30???~+60???
  Storage Humidity	10-95% no condensation

The data to the displays will be increment by the Console which will be provided along with the display. For larger displays the interface is PC Additional Information:

• Production Capacity: 100
• Delivery Time: 1 week
